Phillips MC SCREWS
Cross Recessed Machine Screws
The Phillips screw drive (specified as an ANSI Type I Cross Recess and type H in ISO documentation) is among the most popular drive style for screws.

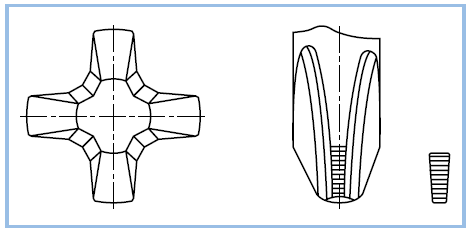

Cross recess H (Phillips) according to ISO 4757
- Has a conventional cruciform recess with all walls inclined, the end of the screwdriver having trapezoid webs.
- The general dimensions are given in the product information of the respective catalogue group.
- The design is often criticized for its tendency to cam out at lower torque levels than other “cross head” designs.
Head Styles

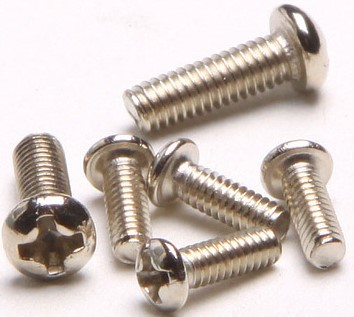

PAN PHILLIPS

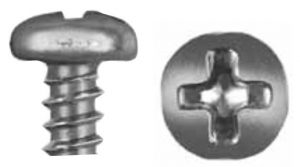

The pan head is cylindrical head with a slightly rounded top surface and a flat bearing surface underneath. This head style is ideal for most applications where a protruding head is acceptable.
Applicable standards –
- IS 7483 – Indian Standard
- DIN 7985 – DIN [German] standard
- ISO 7045 – International Standards Organisation
- JIS B1111 – Japanese standard
DIN Sizes from M1.6

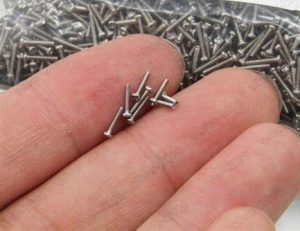

Micro Sizes now available starting from M1.0
Materials – Steel, Stainless Steel AISI 304 and 316, Titanium on request.
Metric Thread
DIN 7985 Pan Phillips SS-304 A2 –
DIN 7985 Pan Phillips SS-316 A4 –
DIN 7985 Pan Phillips Mild Steel-Zinc –
DIN 7985 Pan Phillips Mild Steel-Zinc Yellow –
JIS B1111 Pan Phillips SS-304 A2 –
JIS B1111 Pan Phillips SS-316 A4 –
The Japanese standard is more popular for electronic assemblies due to the smaller head. We now carry JIS PAN Phillips screws in our standard stock range.
You can utilise the benefit of smaller head diameters for limited space applications.
SS-304 and SS-316 available in Black on request:
DIN 7985 Pan Phillips SS-304 A2 Black –
DIN 7985 Pan Phillips SS-316 A4 Black –
Pan Phillips now available in Micro sizes starting from M1.0:
Micro Pan Phillips SS-304 A2 –
Micro Pan Phillips SS-316 A4 –
Unified/British Series
ASME-B18.6.3 UNC Pan Phillips SS-304 A2 –
ASME-B18.6.3 UNC Pan Phillips SS-316 A4 –
BS-4183 Pan Phillips SS-304 A2 –
Pan Phillips now also available with Washer:
CSK Phillips
Countersunk (also called Flat head or CSK) screws are used for flush mounting of sections, usually where one part slides over another or one part is mounted on another. They are used with a countersunk hole to provide a flush, snag free fit.
Applicable standards
- IS 7485 – Indian Standard
- DIN 965 – DIN [German] standard
- ISO 7046 – International Standards Organisation
- JIS B1111 – Japanese standard
DIN Sizes from M1.6
Micro Sizes now available starting from M1.0
Materials – Steel, Stainless Steel AISI 304 and 316, Titanium on request.
Metric Thread
DIN 965 CSK Phillips SS-304 A2 –
DIN 965 CSK Phillips SS-316 A4 –
DIN 965 CSK Phillips Mild Steel-Zinc –
DIN 965 CSK Phillips Mild Steel-Zinc Yellow –
ISO 5856 CSK Phillips SS-304 A2 –
JIS B1111 CSK Phillips SS-304 A2 –
The Japanese standard is more popular for electronic assemblies due to the smaller head. We now carry JIS CSK Phillips screws in our standard stock range.
You can utilise the benefit of smaller head diameters for limited space applications.
SS-304 and SS-316 available in Black on request:
DIN 965 CSK Phillips SS-304 A2 Black –
DIN 965 CSK Phillips SS-316 A4 Black –
CSK Phillips now available in Micro sizes starting from M1.0:
Micro CSK Phillips SS-304 A2 –
Micro CSK Phillips SS-316 A4 –
Micro CSK Phillips SS-304 A2 Black –
Micro CSK Phillips SS-316 A4 Black –
CSK with 100 and 120 degrees head for greater space and weight saving applications:
TRUSS Phillips
Applicable standards –
- JIS B1111 – Japanese standard
- Sizes from M2
- Materials – Steel, Stainless Steel AISI 304 and 316
Usage Guide
- Check tapped hold with thread plug gauge to ensure correct fit.

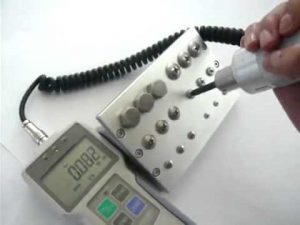

- Do NOT over-tighten. Keep the tightening torque to about 80% of the recommended torque for best results. Use a Torque adjustable driver.
