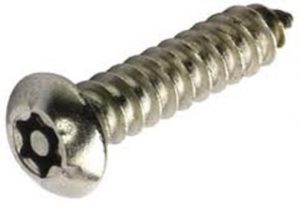

Pin-Torx Self Tapping Security Screw

As the name states, this has an internal pin within the 6-Lobe socket which requires a special insert bit or key wrench to insert & remove.

This reduces the risk of tampering by thieves or intruders undoing the screws.

This design provides more clamping force.

The Hexalobular TORX inner drive facilitates a more reliable slipless fixing. Due to its 2-way reusable fixing capability, this is a useful security screw where maintenance is required.


Features

  • Unique internal pin system.
  • Re-usable.
  • Requires special tools
  • Suitable For High Torque Applications

Application

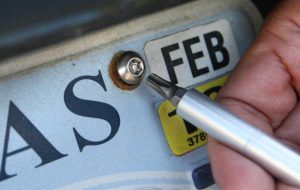

Solar panels, control panels, light fixtures in trains and buses, defence equipment, prisons, hospitals, public signs, security cameras, Electric Vehicles, Number Plates etc.

Material : Stainless Steel AISI 304.

Size Range : #4(2.9mm) to #14(6.3mm) up to 80mm length.


Head Styles

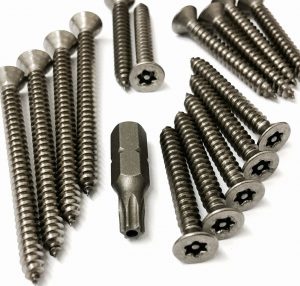

Countersunk (CSK) Head B4K54 – To seat the screws level with the surface.

Sits flush without any projection.


Button (Dome) Head B4K53 – For maximum torque and grip.
