DOME HEAD

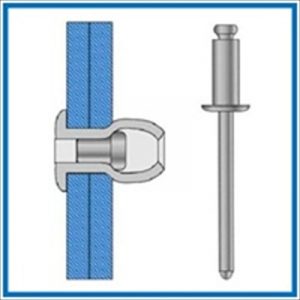

To join two pieces of material, the body of the rivet is inserted into a pre-drilled hole, then a nail rivet tool is used to pull the top of the mandrel to expand the body, clamping the two materials together.
DOME HEAD
The force of the rivet tool then pops off the mandrel, leaving behind the domed head blind rivet.
Standard blind rivets can be placed on components that are accessible on one side or on two sides.
Applications: Containers/tanks, hollow body, tubes, profiles, air ducts and many others.
Characteristics: Economical • versatile • strong • secure
Rivet Body
Aluminium Blind Rivets – Lightweight with good corrosion resistance.
Steel Blind Rivets – Stronger than Aluminium with a “flash” coating of Zinc. Low corrosion resistance.
Stainless Steel Blind Rivets A2 – Good Strength and excellent corrosion resistance.
Stainless Steel A4 Blind Rivets – Good Strength and increased corrosion resistance
Copper Blind Rivets – Relatively soft. Excellent corrosion resistance and conductivity.
Monel Blind Rivets – The strongest blind rivet material with excellent corrosion resistance and conductivity. Also excellent high temperature suitability.

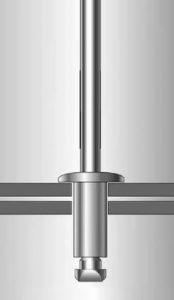

Open End “STANDARD” Blind Rivets
General purpose rivet available in a wide range of materials and head styles.
Suitable for applications with normal load bearing requirements.
By far the most commonly used style of blind rivet due to the ease of use and low initial cost.

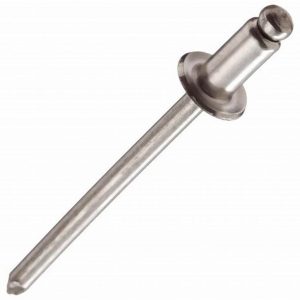

Dome Head Rivets
The Dome Headed or sometimes called Round head blind rivet is the most versatile and commonly used type whose lower profile head is approx. twice the diameter of the rivet body.
This provides adequate bearing surface for nearly all applications where metals are being joined.
Available in many material combinations.
Aluminium Rivets:
Aluminium-Steel – Lightweight and inexpensive. Easily available. Has low strength. Rivets can tear/fail with load.
Blind Rivet Dome Head AL-ST E1D31G
Aluminium-Aluminium – Extremely lightweight and useful for Aerospace applications. Low strength. Usage must be carefully planned for load.
Blind Rivet Dome Head AL-AL E6D31G
Aluminium – Stainless Steel – This combination has excellent corrosion resistance and better strength. Offers a flexible option for many situations.
Blind Rivet Dome Head AL-SS E8D31G
Steel and Stainless Steel Rivets:
Steel-Steel – Good strength and relatively low cost of rivet. As the rivet body is Steel they are subject to corrosion.
Blind Rivet Dome Head ST-ST A2D31G
Stainless Steel 304 A2-A2 – Has excellent corrosion resistance and high strength. Rivets are relative expensive and require stronger tools for installation.
Blind Rivet Dome Head A2-A2 B4D31S
Stainless Steel – Steel – This combination permits easier installation because the steel mandrel breaks easily compared to an SS one. Reduced cost as compared with SS mandrel.
Stainless Steel 316 A4-A4 – Has excellent corrosion resistance and high strength. Rivets are relative expensive and require stronger tools for installation.
Blind Rivet Dome Head A4-A4 B6D31S
Copper Rivets:

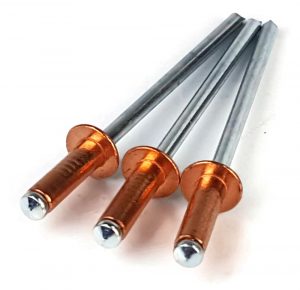

Copper-Steel – Use where electrical conductivity is required.
Blind Rivet Dome Head CU-ST F3D31G
Copper-Bronze – Use where electrical conductivity is required. Bronze gives higher strength and reliability
Blind Rivet Dome Head CU-BR F5D31G
Monel Rivets:
MONEL- Stainless Steel – High Strength, corrosion resistance and temperature resistance.
Useful in Aerospace and high temperature service applications.
Blind Rivet Dome Head MO-SS R4D31G

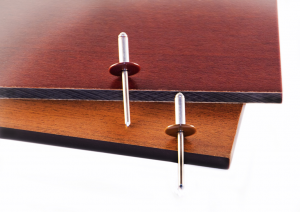

LARGE FLANGE DOME HEAD BLIND RIVETS
The large flange blind rivets are very useful for joining low density materials. In particular when the softer material is on the front side, the large flange spreads the load over a larger area and prevents the rivet from penetrating the material.
Used extensively for fixing exterior composite panels – generally known as Fundermax after the company that pioneered these laminates.
Also available as Epoxy head painted option with a number of colours.
Blind Rivet Dome Head LF AL-ST Black E1D31-Black
Blind Rivet Dome Head LF AL-ST Black E1D31-White
