Phillips Self Tapping Screws
A self-tapping screw is a screw that can tap its own hole as it is driven into the intended material. These are different from traditional screws as they tap their own threads when screwed into either plastic, wood or metal.
Phillips(Cross Recessed) self-tapping

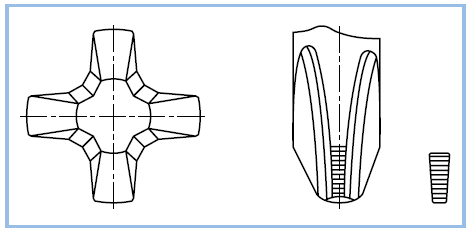

Cross recess H (Phillips) according to ISO 4757
- The Phillips cross recessed head is the world’s most widely used system.
- Has a conventional cruciform recess with all walls inclined, the end of the screwdriver having trapezoid webs.
- The general dimensions are given in the product information of the respective catalogue group.
Pan Phillips as per DIN 7981
Also available in Micro sizes:
CSK Phillips as per DIN 7982
Also available in black finish:
Usage Guidelines
- The pilot hole size is very important to achieve a proper installation. Make trials using the guidelines in the product datasheets before mass production. The hole size would be dependent upon the base material strength, base material thickness, pull out strength and ease of installation required.
- Do not overtighten. Use the correct tightening Torque as recommended. See the product datasheets for information. Usage of Torque control drivers is suggested.
- Do NOT use the screws to compensate for any alignment defects by applying more force than required. This will cause un-stability of the connection and unpredictable failure.
- Use the correct countersink tool for CSK screws to achieve a flush fixing.
- Use a good quality drive bit to avoid excessive play and Cam out problems.
