MicroFast Machine Screws

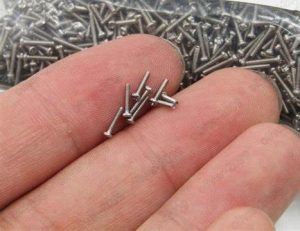

The MicroFast special range of micro size machine screws starts from M1.0x0.25.
As products keep getting smaller and smaller, there is a real need to have very small screws and nuts to connect a number of mini components.
This range provides a solution to the many industries that need reliable fixing options in the Micro range.
Our range of micro fasteners include a range of Machine screws. Starting from M1x0.25 onward.

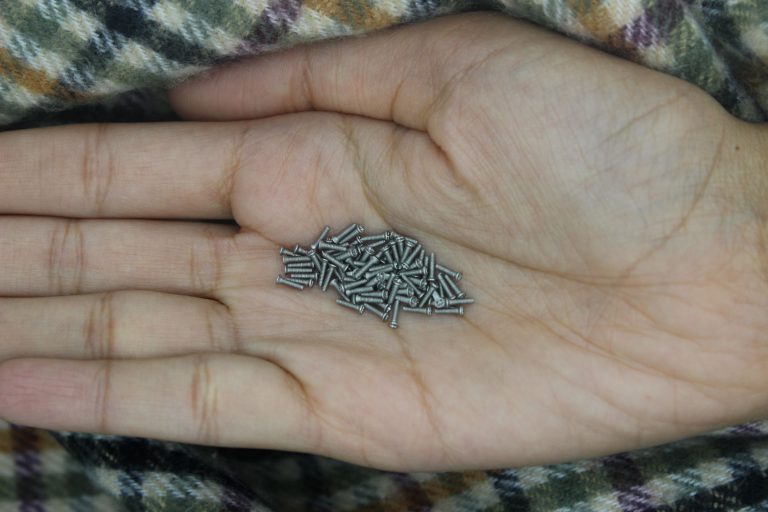

MicroFast CSK Phillips Micro Machine Screws
CSK Phillips head offers fixings with a flush and level finish without any projection.
Material : Stainless Steel AISI-304. AISI-316 on special order.
Finish – Black coated on special order

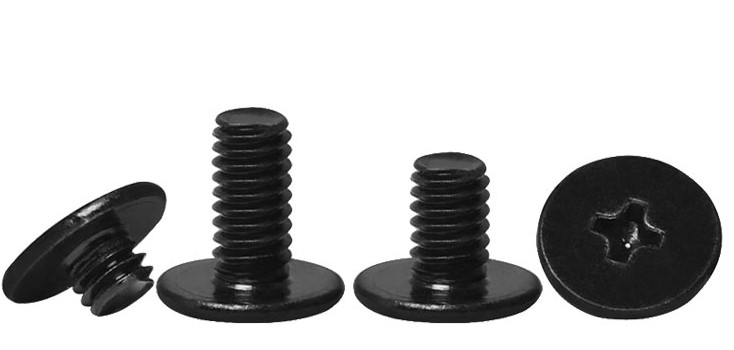

Low Profile or Wafer Head Screws.
These are extremely suitable for tight spaces and for reducing component weight.
With the miniaturisation of a large number of products, this has become an invaluable addition to the range of screws.
With a flattened fastening face, this supports layers of parts.

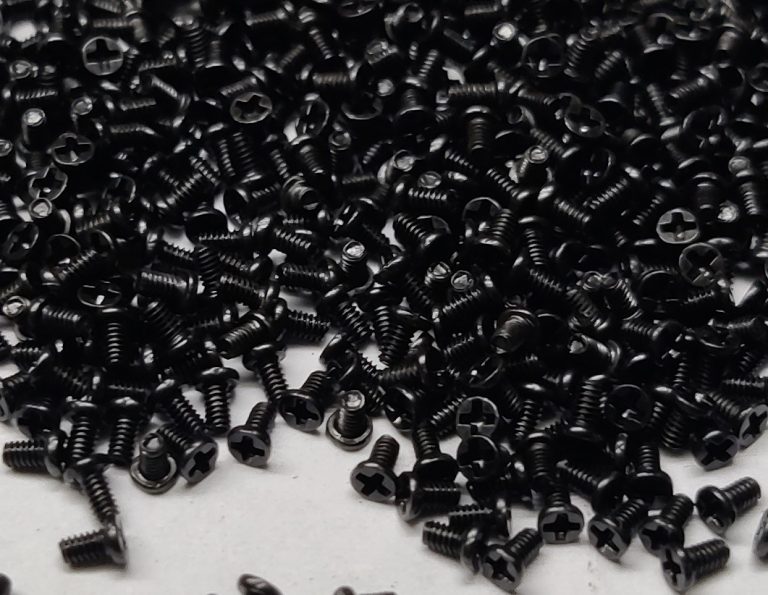

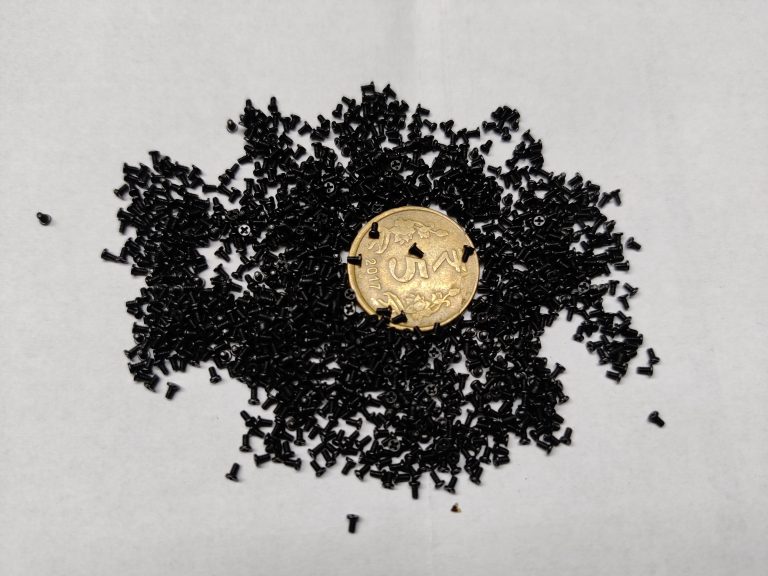

Made from Steel with a Black Coating, this has many advantages
- Magnetic to facilitate easy holding to the driver bit.
- Black coated to match with most electronic assemblies and light absorption.
- Low profile head for space and weight saving.
- Lengths as short as 2 mm for an M2 screw available.
- Lengths in decimals also available eg. 2.5, 3.5 etc.
Usage Guidelines
- Always keep the tightening torque within the recommended torque range. This will prevent screw and joint failure. Using a torque enabled driver is recommended.
- Check tapped hole with thread plug gauge before assembly to ensure perfect installation.
- Use a good quality Drive bit and check that there is no excessive play before applying torque.
