Lag Bolts [Coach Bolt]

Lag Bolts/Lag Screws Known as lag bolts or lag screws or coach screws, these are among the toughest fasteners used in the industry. These extremely sturdy fasteners are usually used to connect heavy lumber or other heavy materials that bearing intensive loads. Their distinctive feature is their huge size with their starting size being approx. 20mm long and about 6mm thick. Lag screws have sharp lead thread points and are usually hex head.

Bolts can be described as long shafts with a distinct head on one side. These are generally partially threaded.

A fully threaded bolt is referred to as a screw.


Specifications

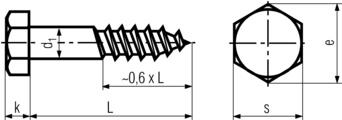

Materials : Mild Steel and Stainless Steel DIN 571

Size Range : 5mm to 12mm diameters and 20mm to 150mm length

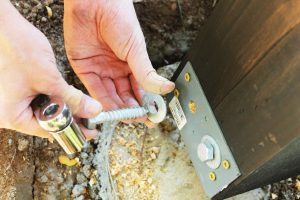

Typical Uses : Fixing clamps, plates to flooring, walls etc. Fixing Dish Antennas, road humps, outdoor play equipment, etc

MS-Zinc Plated

SS-304 A2

SS-316 A4


Usage Notes

Pilot hole : It is good practice to make trials to establish the optimum hole diameter in wood so that the body does not split while tightening.

Using a washer is recommended when fixing on wood or other softer materials.
