Nylon Fixings Expandet

This selection of fixings is suitable for multiple types of masonry including Brick and Concrete.

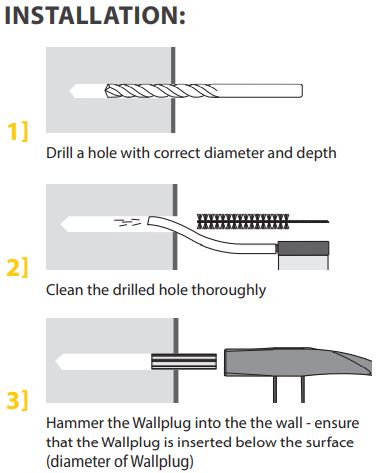

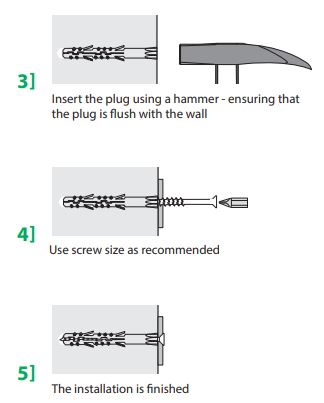

Wallplug

The original design that brought in this technology.

An extremely reliable wall anchor used for fixing into solid brick and concrete.


Advantages

  • Expansion on the total surface/length of the wallplug.
  • Three external fins prevent rotation.
  • Profile ensures self centering of the screw.
  • High tensile loads in concrete and solid brick.
  • Protects the screw against corrosion.
  • Available dia: 4-14mm. Length: upto 90mm Load capacities from 20kgs to 900kgs.

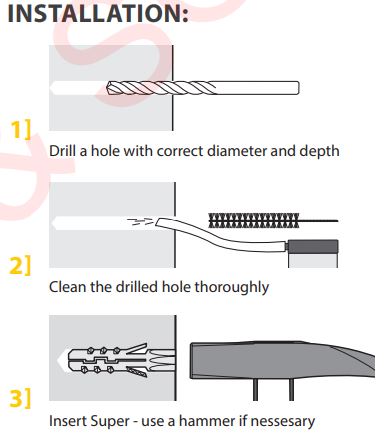

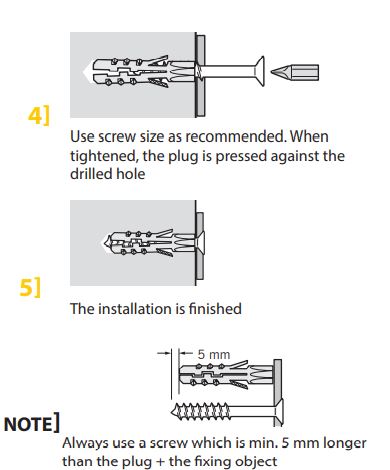

Super Plug

High load capacity.

Octagonal neck/strong wings prevent rotation in drilled hole.

Usable as through fixing due to knock in protection.

The design ensures self centering of screw.

Made of Nylon PA6; Withstands temp from -40 to +80

Size Range: 4mm to 20mm

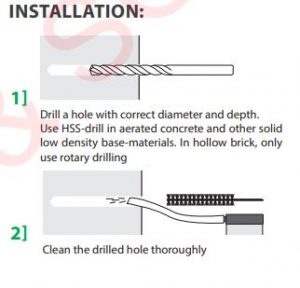

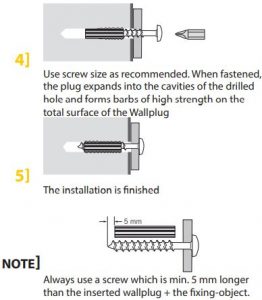

Super Plug with Long Expansion

Specially developed for fixing in Hollow Bricks, Aerated concrete, lightweight blocks & porous walls..

Wide range for fixing Bathroom fittings, lamps, electric fittings in porous walls.

Advantages

  • Octagonal neck/ strong wings prevent rotation in drilled hole.
  • Expandet Super with long Expansion ensures self centering of the screw.

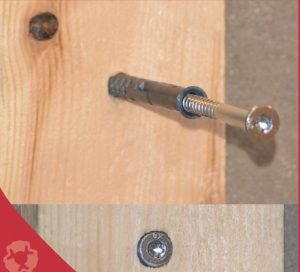

8mm Super Frame Fixing

Specifically developed for fixing of door and window frames, wooden laths, substructures, cladding etc.

Advantages

  • Through fixing
  • High load capacities
  • Usable in several building materials
  • Nylon anchor, withstands temp from -40C to +80C


Frame Fixing with Long Expansion – CSK

Specially developed for fixing of window frames etc in lightweight blocks, aerated concrete, hollow bricks and porous walls.

Advantages

  • Through fixing
  • High load capacities in low density base material
  • No Thermal bridge
  • Nylon anchor, withstands temp from -40C to +80C.

Nail Anchor

For fixing of skirting, brackets, laths, frames and battens etc in solid brick and concrete. A hammer-fix anchor.

Advantages

  • Fast & easy fixing – can be removed.
  • Countersinks itself when nail is hammered in.
  • Usable in aerated concrete.
  • Wide range of nail types.
  • Through Fixing.
  • Available in CSK and Cylindrical head
  • Nylon Plug, withstands temp -40C to +80C

MFA Anchor CSK

Expandet MFA with countersunk head is a multi facade/frame anchor that is suitable for fixing of facades, doors, windows, gates, cable trays, metal bracket etc. in concrete, solid bricks, hollow bricks and aerated concrete.

MFA is CE-marked: useful for fixing lightweight facades.

Advantages

  • Fast & easy fixing – can be removed.
  • Countersinks itself when nail is hammered in.
  • Usable in aerated concrete.
  • Wide range of nail types.
  • Through Fixing.
  • Available in CSK and Cylindrical head
  • Nylon Plug, withstands temp -40C to +80C
